HYDRAUTAN System

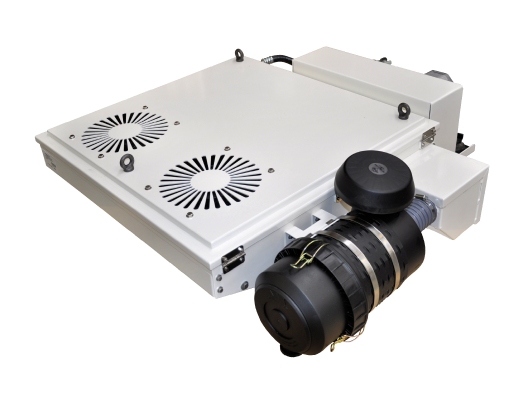

The HYDRAUTAN monoblock system contains all the components of a full air conditioning system and is an ideal option when it is not possible to install a fully integrated HVAC system in the vehicle cabin. Designed to be roof-mounted on vehicles used in off-road applications, construction, earth moving or mining, there are 6 different varieties, available as either AC-only or AC and heating configurations for either 12 or 24 V supplies.

The HYDRAUTAN hydraulic system is particularly suitable for situations in which it is not possible to connect the compressor to the vehicle engine. The HYDRAUTAN monoblock system is compatible with R134a and R1234yf fluids.

INFORMATION

      Technical characteristics

      VoltageRated CurrentCooling capacityHeating capacityHydraulic pressureFlow requiredAir flow rateRef. Air Con./Heating
      12 V480 W6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.110 à 170 bar30 à 60 l/mn1080 m³/h320A90
      24 V480 W6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.110 à 170 bar30 à 60 l/mn820 m³/h320A89

      Download 3D envelope
