Air diffusers

Robust and durable, SNDC’s sealable and rotatable air diffusers are designed for use in extreme conditions in a variety of vehicle types, including industrial, off-road, agricultural, public works and mining vehicles.

SNDC air diffusers lose charge very slowly, guaranteeing optimum air distribution over time. They can also be sealed or rotated, making it possible to regulate the direction and flow of air as required.

There are also optional :

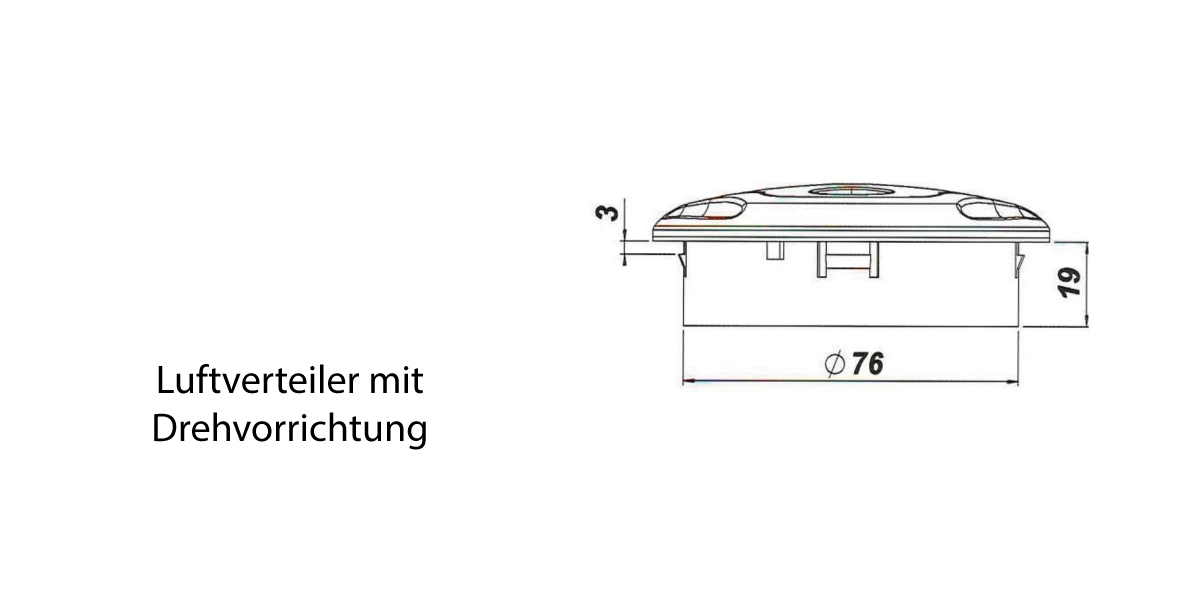

  • Rotation Support – 370B32

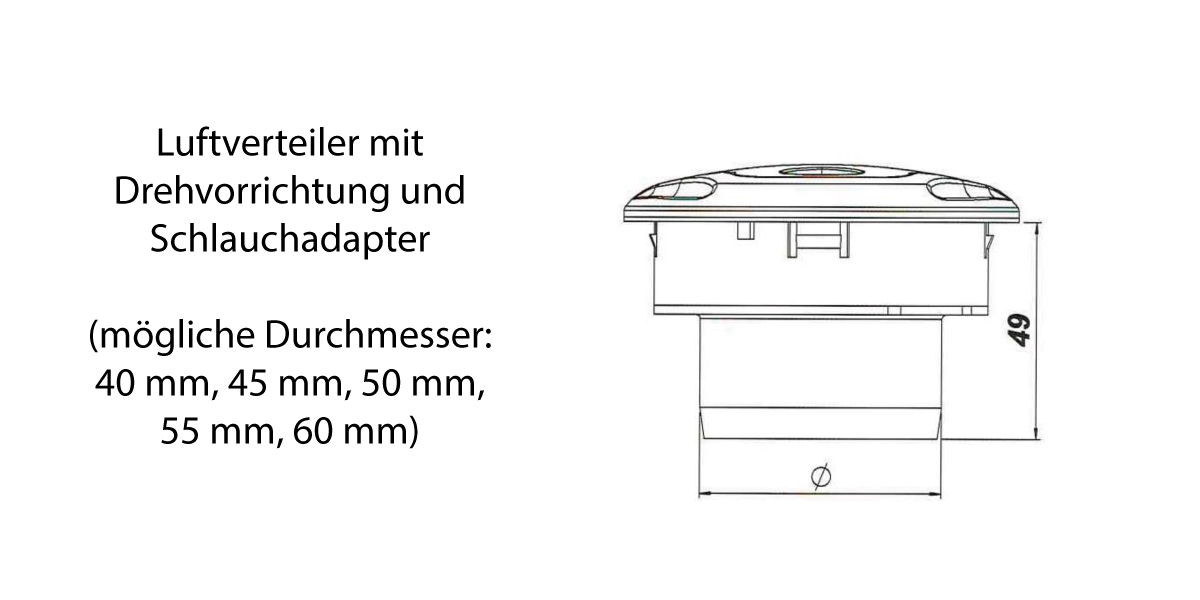

  • Duct Adapter 40 mm – 370B70
  • Duct Adapter 45 mm – 370B67
  • Duct Adapter 50 mm – 370B68
  • Duct Adapter 55 mm – 370B33
  • Duct Adapter 60 mm – 370B69

INFORMATION

      Technical characteristics

      External DiameterCut-out Diameter Without Rotation SupportCut-out Diameter With Rotation SupportAdapter for Different Size Ducts
      90 mm68.5 mm76 mm40 mm, 45 mm, 50 mm, 55 mm, 60 mm

      Documents

      Download 3D envelope
