ALIZE 5

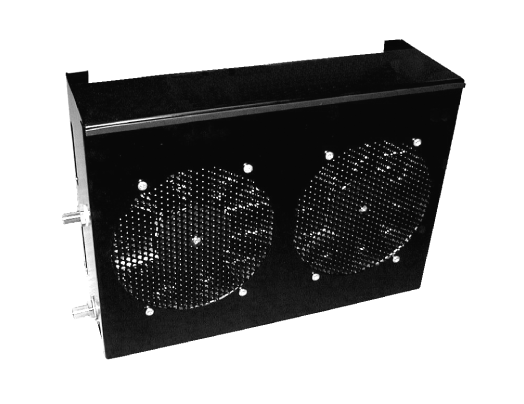

ALIZE 5 Stand-alone Condenser

Installation: vertically on the cabin wall
Integrated filter-dehydrator
Spiral fans
Trinary pressure safety switch
Waterproof electrical connections for the cable harness (IP68)
Suitable for cabins up to 4 m³ in volume
Weight: 12 kg

INFORMATION

Technical characteristics

Voltage	Power Consumption	Cooling Capacity	Airflow	Reference
12 V	216 W	5,1 kW, 43 °C, 50 % HUMID.	1960 m³/h	340A14
24 V	240 W	5,1 kW, 43 °C, 50 % HUMID.	2060 m³/h	340A15

Documents

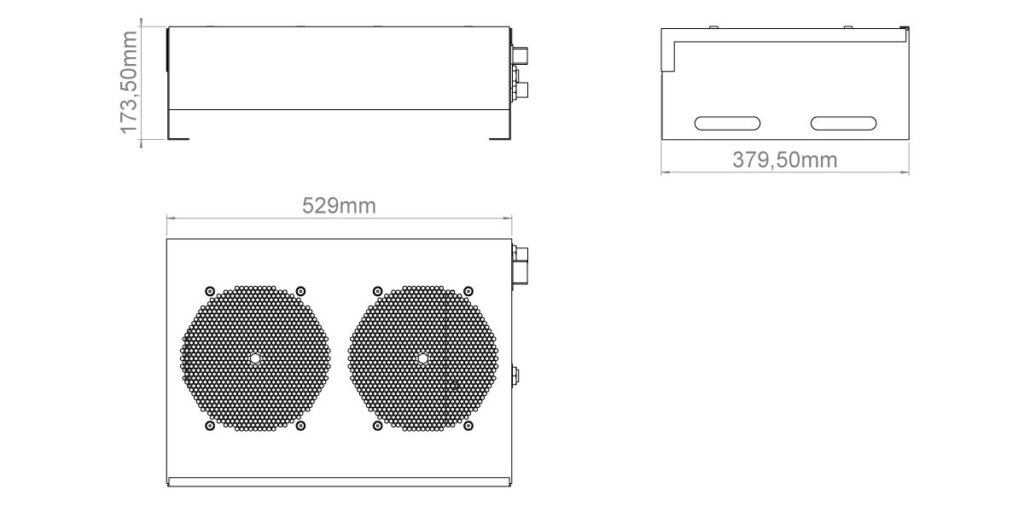

Download 3D envelope
