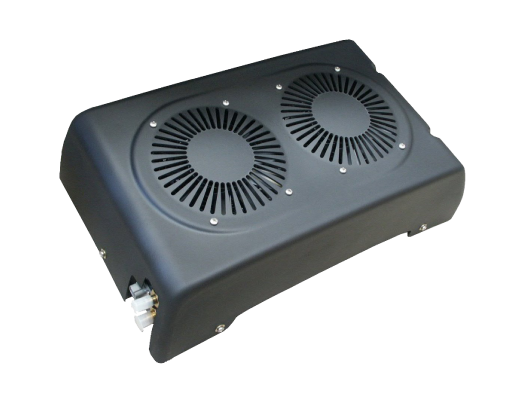

ALIZE 7

The ALIZE 7 stand-alone condenser is available in a range of different versions enabling installation in all possible positions:

Integrated high-capacity filter-dehydrator
Spiral fans
Binary pressure safety switch
Waterproof electrical connections for the cable harness (IP68)
Suitable for cabins up to 4 m³ in volume
Weight: 10 kg

INFORMATION

Technical characteristics

Voltage	Power Consumption	Cooling Capacity	Airflow	outlets	Position	Color	Reference
12 V	216 W	5,1 kW, 43 °C, 50 % HUMID.	1960 m³/h	Right	Horizontal	White	340A65
					Horizontal	Black	340A66
					Vertical	White	340A61
						Black	340A62
				Left		White	340A57
				Left		Black	340A58
24 V			2060 m³/h	Right	Horizontal	White	340A67
					Horizontal	Black	340A68
					Vertical	White	340A63
						Black	340A64
				Left		White	340A59
				Left		Black	340A60

Documents

Download 3D envelope
