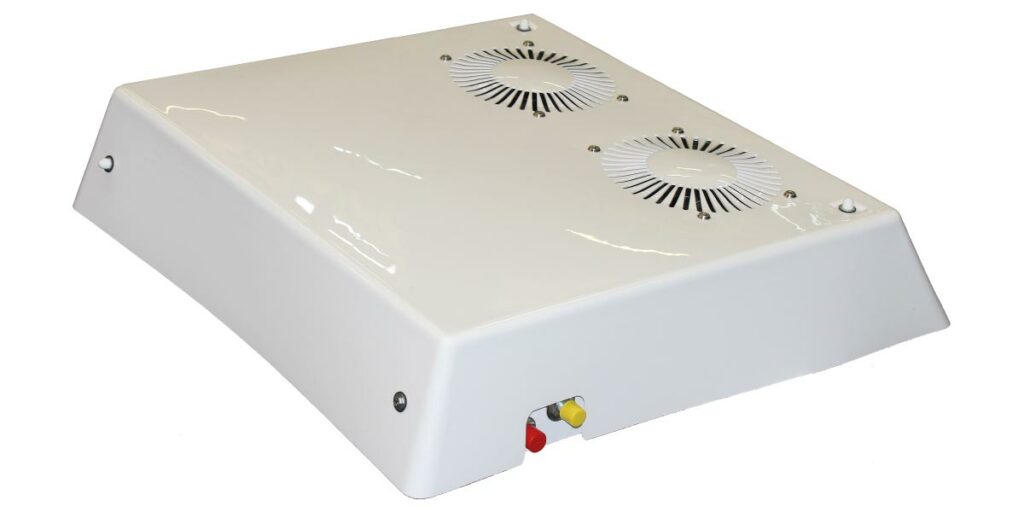

AUTAN 5

The AUTUN 5 forms of part of SNDC’s most popular range of monoblock air conditioning systems for the agricultural market.

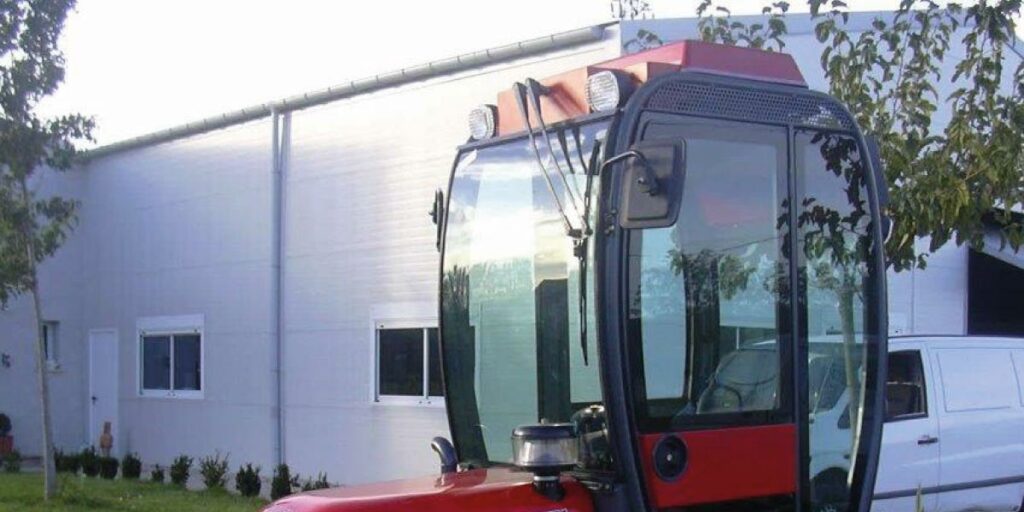

The system offers excellent air conditioning performance and is designed to be easily roof-mounted on all types of cabins.
The AUTAN 5 is designed for use in the toughest working conditions with significant vibration, high levels of dust and high temperatures.

Details:

Suitable for cabins up to 4 m³ in volume
Pressure switch: HP – LP
Position: Roof lining
Requires cutting of the roof
Filtration: dust – active carbon
Weight: 31 kg

INFORMATION

Technical characteristics


Voltage	Rated Current	Cooling Capacity	Heating Capacity	Air flow	Supplements	Color	Ref. Air Con.	Ref. Air Con./Heating
12 V	480 W	6.3 kW, 43 °C, 50 % HUMID.	6.4 kW, -15 °C, 40 % HUMID.	1080 m³/h	Pressure switch: HP - BP Position: Ceiling mounted Roof cut-out: Yes Weight: 31 kg	White	320A01	320A29
24 V	480 W	6.3 kW, 43 °C, 50 % HUMID.	6.4 kW, -15 °C, 40 % HUMID.	820 m3/h			White	320A03	320A33
12 V	480 W	6.3 kW, 43 °C, 50 % HUMID.	6.4 kW, -15 °C, 40 % HUMID.	1080 m3/h			Black	320A05	320A31
24 V	480 W	6.3 kW, 43 °C, 50 % HUMID.	6.4 kW, -15 °C, 40 % HUMID.	820 m³/h			Black	320A07	320A35
