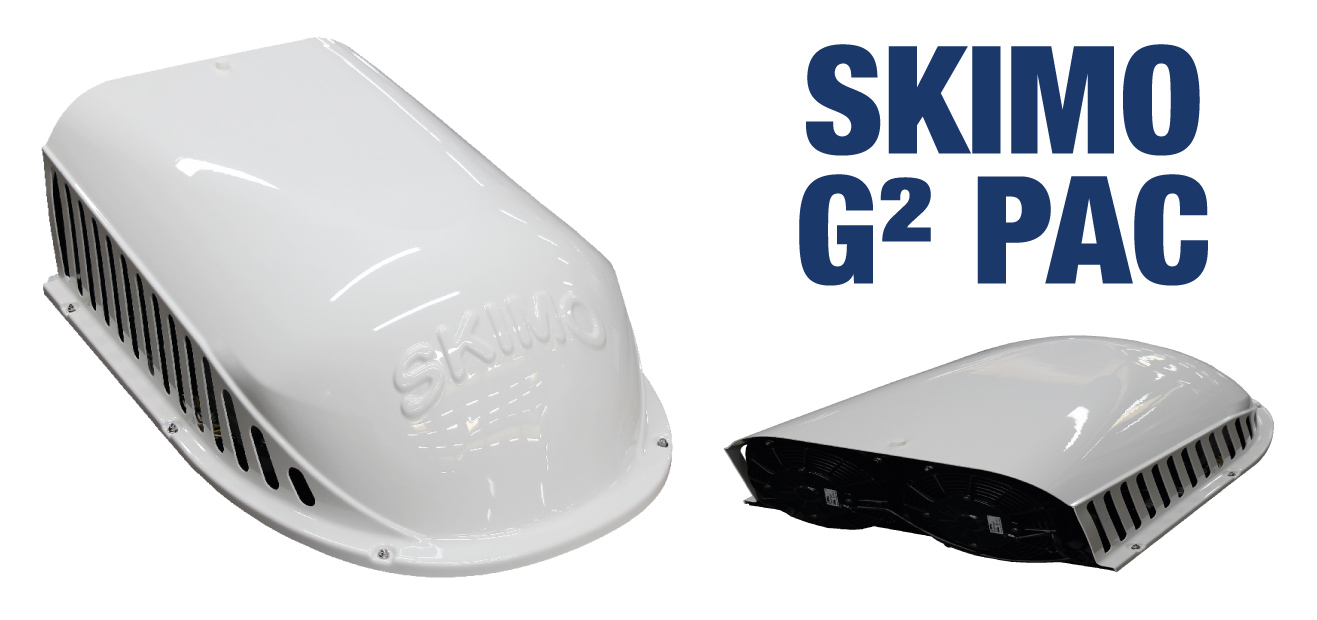

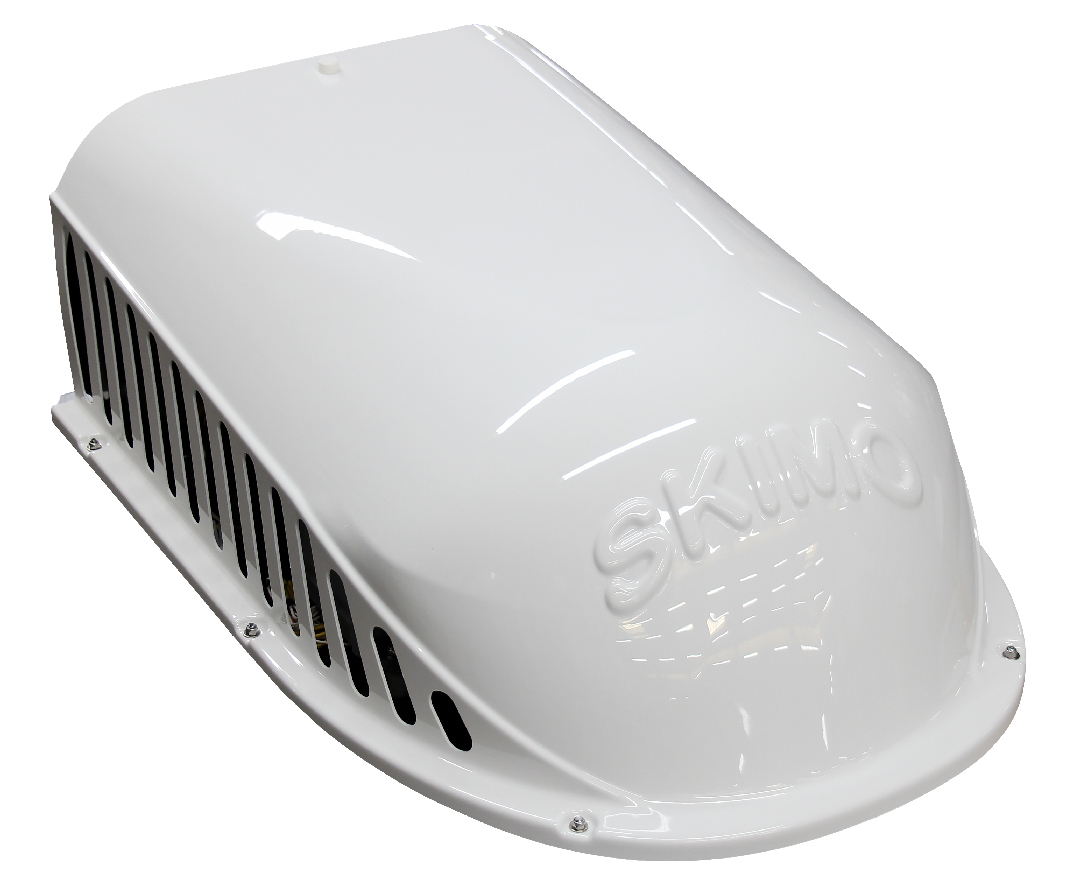

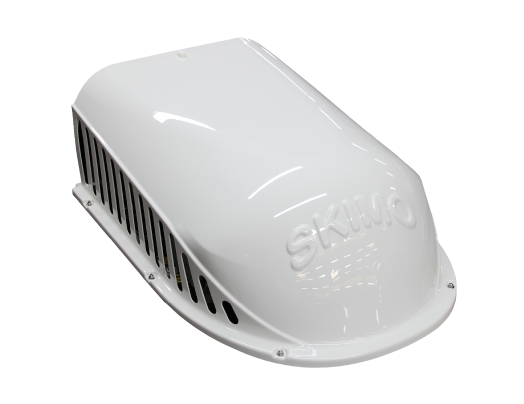

SKIMO G² PAC

Two versions available: cair conditioning and electric heating

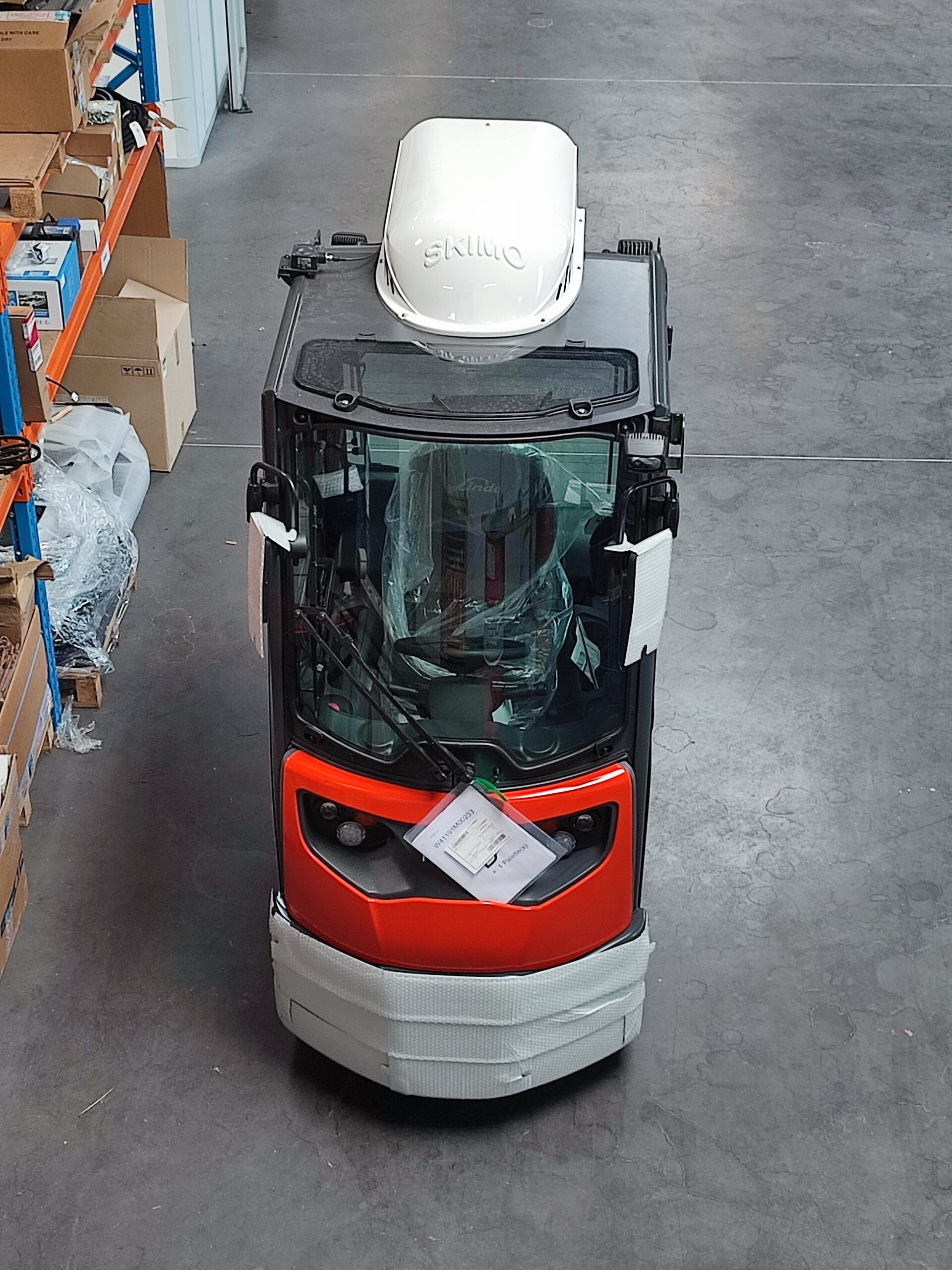

Position: on the roof

Dimensions: 762 x 522 x 232 mm

SKIMO G² PAC (heat pump) benefits from recent technologies offering the best COP ( performance / power consumption) of the market (in air conditioning or heating mode). Additional advantages: low power consumption, low noise emission level, motor-driven compressor (spiral technology) integrated, R134a and R1234yf refrigerant with low global warming power.

Equipped with safety devices, undervoltage, overvoltage, overconsumption or motor overheating, the compressor is protected in the event of overpressure or underload of refrigeration.

INFORMATION

      fp skimo g2

      Technical characteristics

      Tension
      (Alim./Acc.)
      Puissance
      frigorifique
      Climatisation
      Temp. max.
      utilisation
      Climatisation
      Conso. élec.
      (Alim./Acc.)
      Puissance
      calorifique
      Chauffage
      Temp. max.
      utilisation
      Chauffage
      Conso. élec.
      (Alim./Acc.)
      DimensionsRéférence
      24 V3.5 kW,
      31°C,
      50 % HR
      55 °C40 A1.8 kW-5 °C40 ADimensions :
      762 x 522 x 232 mm

      Plafonnier intérieur :
      395 x 372 x 63 mm

      2 découpes de toit :
      228 x 60 mm
      311 x 75 mm
      320C34
      48 V / 12 V30 A / 20 A2.0 kW30 A / 20 A320C44
      48 V / 24 V30 A / 10 A2.0 kW30 A / 10 A320C47
      80 V / 12 V14 A / 20 A2.2 kW17 A / 20 A320C49
      80 V / 24 V14 A / 10 A2.2 kW17 A / 10 A320C50
      96 V / 12 V12 A / 20 A2.5 kW15 A / 20 A320C51
      96 V / 12 V12 A / 10 A2.7 kW15 A / 10 A320C58

      For higher voltages, don’t hesitate to contact us, a solution exists.
