HVAC Products > SKIMO Range > SKIMO G²

SKIMO G²

Available versions: Electric air conditioning only

Installation: Roof-mounted

Dimensions: 762 x 522 x 232 mm

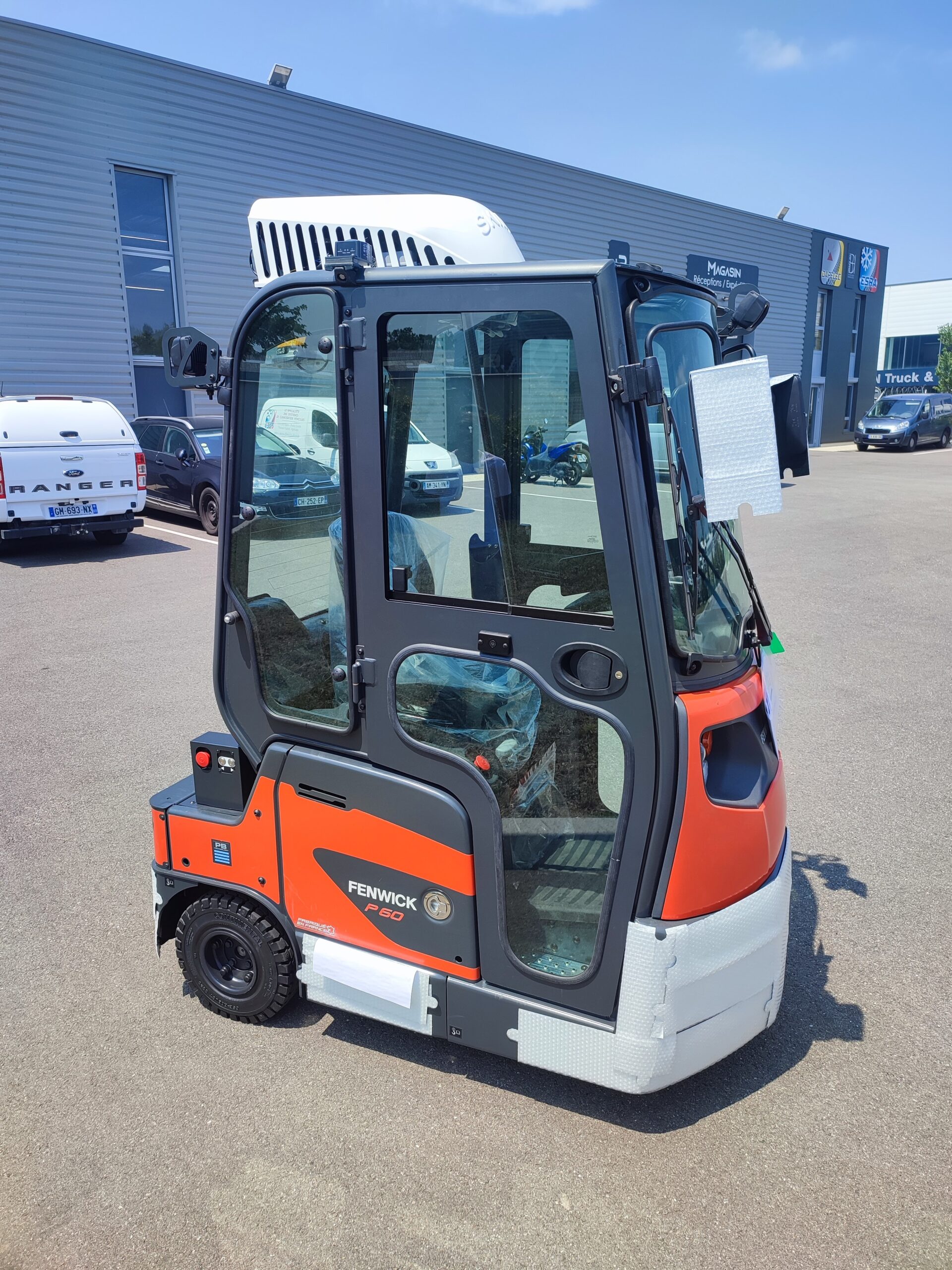

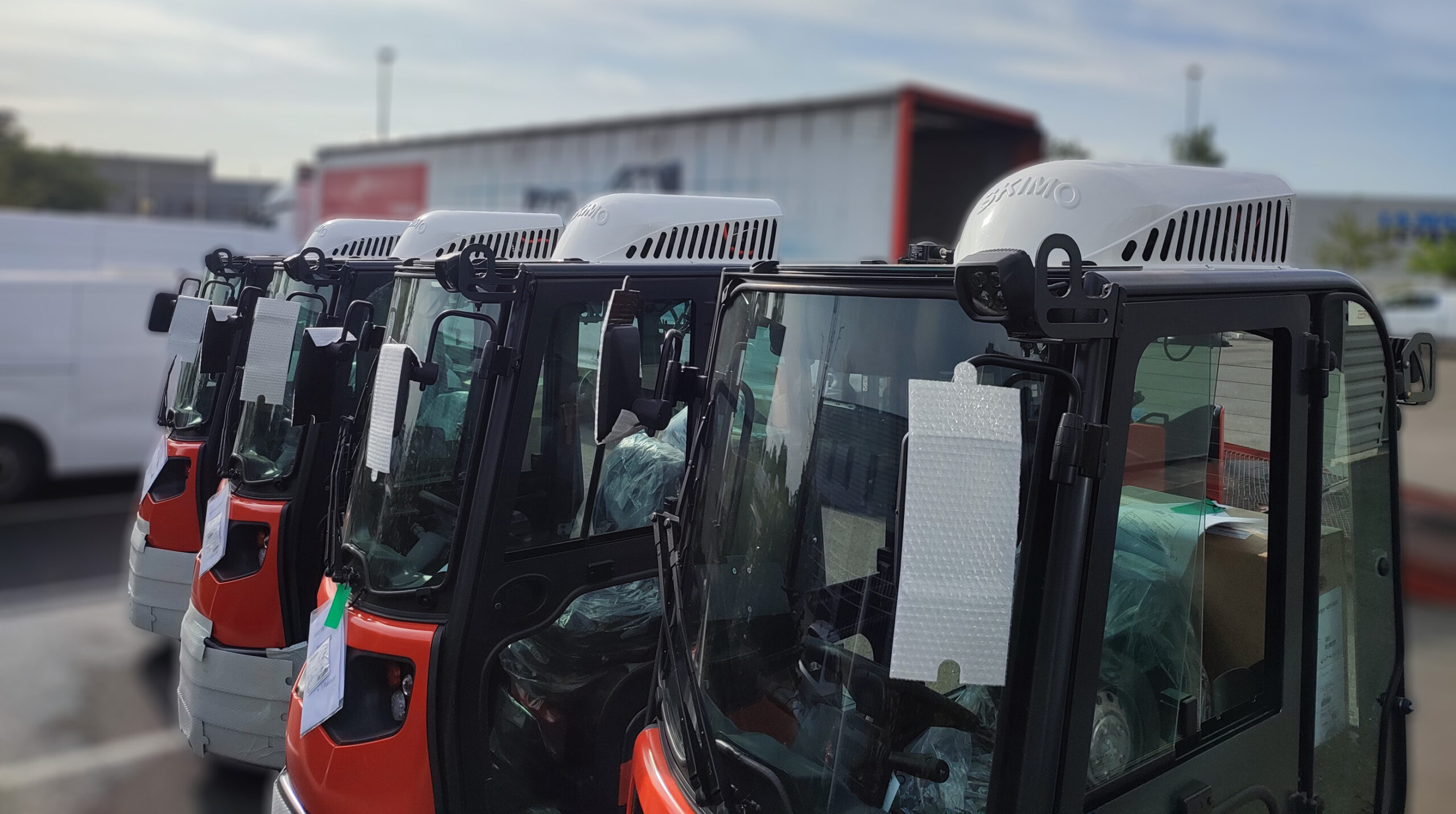

Roof-mounted monobloc electric air conditioning system. Compact, easy to install and complete self-contained, the SKIMO G² delivers high performance and can be fitted to most vehicle types without the need to install an additional compressor connected to the engine.

SKIMO G² is delivered fully charged with R134a or R1234yf refrigerant.

INFORMATION

      fp skimo g2
      User Manual
      Exploded Drawing
      Dimensions

      Technical characteristics

      Voltage
      (supply/peripherals)      		Cooling CapacityMax. Operating Temp.Rated Current
      (supply/peripherals)      		DimensionsRef. No.
      12V3.5 kW 31° C, 50% RH55° C80 ADimensions:
      762 x 522 x 232 mm

      Interior Section:
      395 x 372 x 63 mm

      Required Roof Hole:
      228 x 60 mm et 311 x 75 mm      		320B96
      24V3.5 kW 31° C, 50% RH55° C40 A320B98
      48V / 12V3.5 kW 31° C, 50% RH55° C30 A / 20 A320B99
      48V / 24V3.5 kW 31° C, 50% RH55° C30 A / 10 A320C27
      80V / 12V3.5 kW 31° C, 50% RH55° C14 A / 20 A320C28
      80V / 24V3.5 kW 31° C, 50% RH55° C14 A / 10 A320C29
      96V / 12V3.5 kW 31° C, 50% RH55° C12 A / 20 A320C30
      96V / 24V3.5 kW 31° C, 50% RH55° C12 A / 10 A320C31

      For higher voltages, don’t hesitate to contact us, a solution exists.

      Download 3D envelope
