WORKSHOP

The WORKSHOP air cnditioning filling stations are dedicated to workshop after-sales (passenger cars, commercial and industrial vehicles…)
One refrigerant, one station, find out more about our stations:

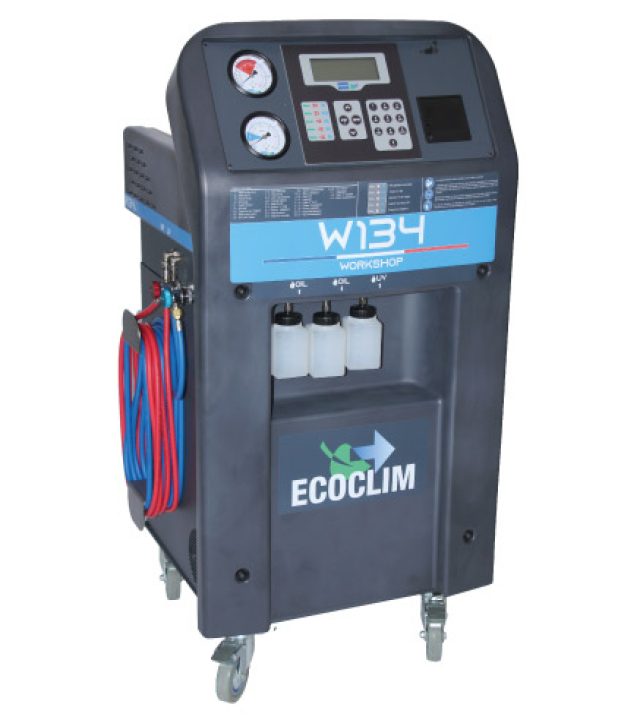

  • W134 for refrigerants R134a
  • W1234 for refrigerants R1234yf

Stations in the WORKSHOP range are :

  • Intuitive interface
  • Recording and management of intervention data
  • Top-of-the-range multifunction tool
  • W134 and W1234 are totally adapted to the workshop

The advantages of air-conditioning stationsWORKSHOP:

  • Rapid refrigerant recovery
  • Accurate charging
  • 2 vehicle databases
  • 3 leak tests: vacuum, nitrogen and forming gas
  • Easy to use
  • Flushing in liquid phase

INFORMATION

    Error: Contact form not found.

    Technical specifications

    GENERAL SPECIFICATIONSREFRIGERANT RECOVERY, RECYCLING & EVACUATIONREFRIGERANT RESERVOIR & OPERATING CONDITIONS
    Dimensions1200 x 600 x 580 mmRecovery Rate500 g/minCharging Accuracy±10 g
    Power Supply230 Volts 50 HzRecycling Filter Capacity150 kgBottle Capacity10 kg
    Power Consumption1,000 WattsVacuum PumpvaneFlushingin liquid phase
    Empty Weight98 kgVacuum Pump Flowrate100 l/minStorage Temp.-20 °C to 70 °C
    Charging Hose Length3 mOperating Temp.5 °C to 45 °C

    Documents

    Aucun document a télécharger
    No document to download
    Keine Dokumente zum Herunterladen

    The advantages of ECOCLIM stations

    SNDC ECOCLIM is your partner for vehicle air conditioning.

    Accuracy

    All the refrigerant in the separator and condenser is weighed. This is particularly important for low-capacity circuits. Your printable fluid balance is verified. The 2 charging modes - with the engine running or not - allow high weighing accuracy.

    Speed & durability

    The heat belt makes it possible to charge a system in any weather conditions. Thanks to the flow of the vacuum pump, moisture is removed from the circuit faster.
    Cleanable particle filters, connected in series with the charging hoses, protect the station from impurities.

    Practicality

    Suitable for breakdown and recovery vehicles: small footprint, inflatable wheels, functions on front panel, adjusted hose lengths, lifting and strapping handle, etc.

    ECOCLIM Fluides

    ECOCLIM Fluids is the refrigerant manager, a real daily assistant for entering and managing your refrigerant movements.

    ECOCLIM Fluids allows you to:
    - Register authorised technicians
    - Register your tooling, your customers and their equipment
    - Manage the refrigerants on the market (R134a, R1234yf, R404A, R452A...). .)
    - Manage your refrigerant receipts and stocks
    - Print and archive your CERFAs
    - Print the mandatory annual declaration of refrigerant movements
