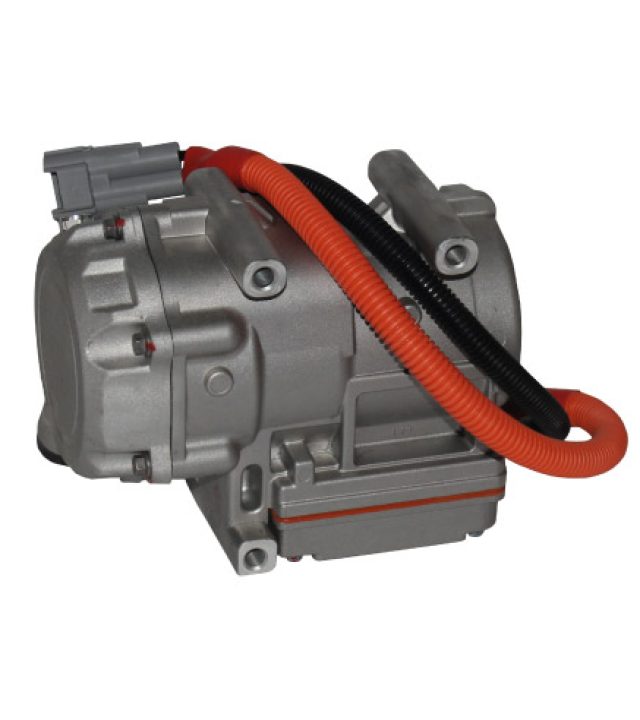

210C24 Electric Compressor

ELECTRIC COMPRESSOR

210C24
- 96V -

The 210C24 low-voltage electric compressor can be used in multiple industrial vehicles and off-road machines and is compatible with R134a and R1234yf.

Téléchargement

Caractéristiques
Compléments d'informations
Produits associés
Contactez-nous

Technical characteristics

Weight
(kg)		Power Consumption
(W)		Cylinder Capacity
(in cc)		Cooling Capacity
(W)		Oil
(in g)		Rotational Speed
(rpm)		COPNoise Level
(dB(A))		Lower Voltage LimitUpper Voltage Limit
5.4740/990/1560181380/1890/29001003000/4000/60001.85/1.9/1.8566/68/7580 V120 V

Additional information

Additional Specifications
  • Voltage: 96 Volts
  • Operating Temperature: -30 °C / 100 °C
  • Standard Connection: 3 speeds or PWM/ADC
  • IP Rating: IP 67
  • Overheating Protection: at 100 °C
  • POE-ISO 80 Oil, SNDC Reference No. 430A46
  • Cooling Capacity: 2.9 kW
  • Current: 16.3 A
  • Power Consumption: 1.56 kW
  • Control: 3 speeds
