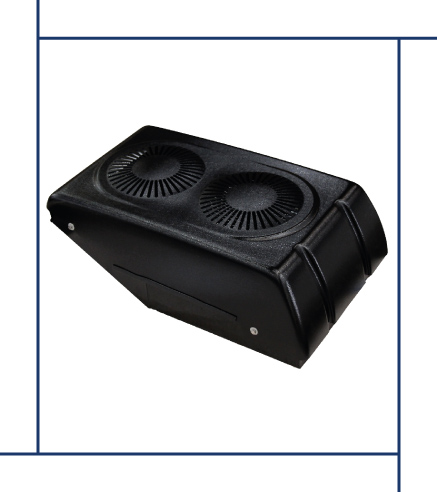

ALIZE E

Applications: Electric heating and air conditioning or Electric air conditioning only.

Installation: horizontal and vertical

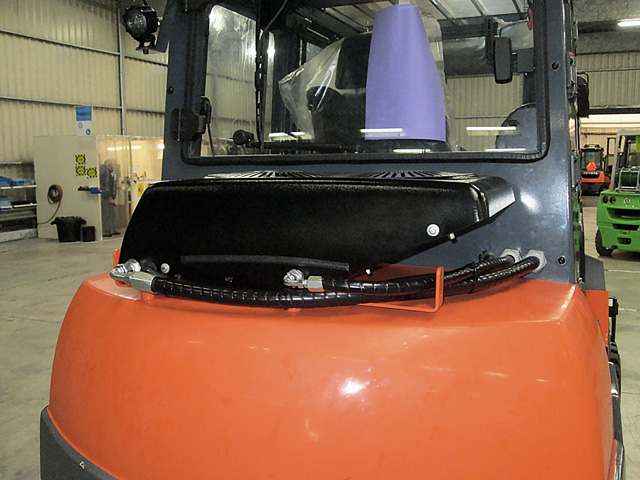

Ideal for electric forklifts, industrial forklifts, electric commercial vehicles, maintenance vehicles and any other vehicle or machine.

From 12 to 120 V versions, the ALIZE E delivers up to 5.9 kW of cooling capacity and a nominal air flow of up to 530 m³/h.

The ALIZE E external unit is fully compatible with the BOREAL, BORA V, BORA H and ZEPHYR interior units.

Optional: metal casing

INFORMATION

Technical characteristics


Voltage (supply)	Voltage (peripherals)	Cooling capacity	Rated Current (supply)	Rated Current (peripherals)	Max. Operating Temp.	Weight	Electrical harness	Reference (horizontal)	Reference (vertical)
12 V	-	5,8 kW, 35 °C, 50 % HUMID.	80 A	-	55 °C	33kg	274B56	340B37	340B48
24 V	-	5,8 kW, 35 °C, 50 % HUMID.	45 A	-	55 °C	33kg	274B58	340B26	340B49
48 V	12 V	5,8 kW, 35 °C, 50 % HUMID.	30 A	10 A	55 °C	33kg	274D55	340B38	340B51
48 V	24 V	5,8 kW, 35 °C, 50 % HUMID.	30 A	5 A	55 °C	33kg	274D55	340B39	340B60
80 V	12 V	5,8 kW, 35 °C, 50 % HUMID.	15 A	10 A	55 °C	33kg	274D55	340B40	340B53
80 V	24 V	5,8 kW, 35 °C, 50 % HUMID.	15 A	5 A	55 °C	33kg	274D55	340B32	340B64
96 V	12 V	5,8 kW, 35 °C, 50 % HUMID.	12 A	10 A	55 °C	33kg	274D55	340B36	340B54
96 V	24 V	5,8 kW, 35 °C, 50 % HUMID.	12 A	5 A	55 °C	33kg	274D55	340B21	340B61
120 V	12 V	5,8 kW, 35 °C, 50 % HUMID.	8 A	10 A	55 °C	33kg	274D55	340B22	-
