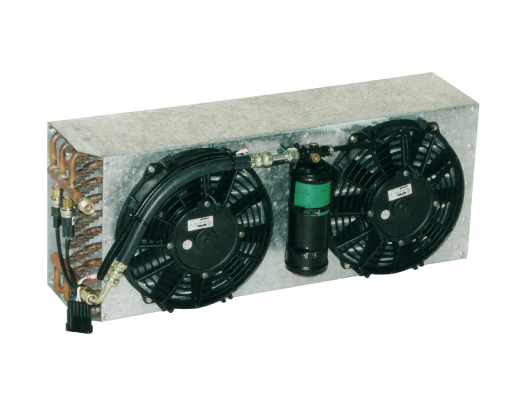

ALIZE 6

The ALIZE 6 is a high-end vertical external condenser, combining compactness (9 kg) with safety for the thermal treatment of cabins up to 3 m³.

  • Installation: the condenser is mounted vertically on the external wall.
  • Dehumidifying filter: fitted as standard to trap moisture and impurities, preventing premature wear of the compressor.
  • Helical ventilation: two fans work together to dissipate heat efficiently, even during peak temperatures in the height of summer.
  • Trinary pressure switch: it cuts off the circuit in the event of a pressure anomaly and automatically regulates ventilation.
  • IP68 waterproof wiring harness: fully sealed connections resistant to water, dust, mud and intensive high-pressure washing.

INFORMATION

      Technical characteristics

      VoltagePower ConsumptionCooling CapacityAirflowDehydrator
      Pressure Port
      Dehydrator
      Safety Valve
      Reference
      12 V195 W7,6 kW, 43 °C, 50 % HUMID.1740 m3/h1/4 SAE MâleTrinary340A51
      24 V240 W7,6 kW, 43 °C, 50 % HUMID.2060 m3/h1/4 SAE MâleTrinary340A55
      24 V202 W7,6 kW, 43 °C, 50 % HUMID.1860 m³/hAucunAucun340B06
