AUTAN HD ELEC

AUTAN HD ELEC is a compact, self-contained, low-voltage electric monobloc air conditioner designed for installation on the roof. AUTAN HD ELEC combines the condenser, evaporator, dehumidifier, pressure switches, control components and electric compressor into a single unit.
AUTAN HD ELEC is suitable for vehicles and machinery exposed to the harshest environments:

  • High cooling capacity,
  • Operation at external temperatures up to +55°C,
  • Robust and resistant to shocks and vibrations,
  • Dusty and humid environments

AUTAN HD ELEC is designed to maintain condenser performance by limiting dust accumulation and the risk of blockages.

Details:

  • Maximum cabin volume: 4 m³
  • Roof cut-out: 470 mm x 320 mm
  • Compressor supply voltages: 24, 48, 44, 144 and 321 volts (DC)
  • Weight: 47 kg
  • Operates in air recirculation mode
  • Hinged cover: quick access to all components for simplified maintenance.
AUTAN HD ELEC

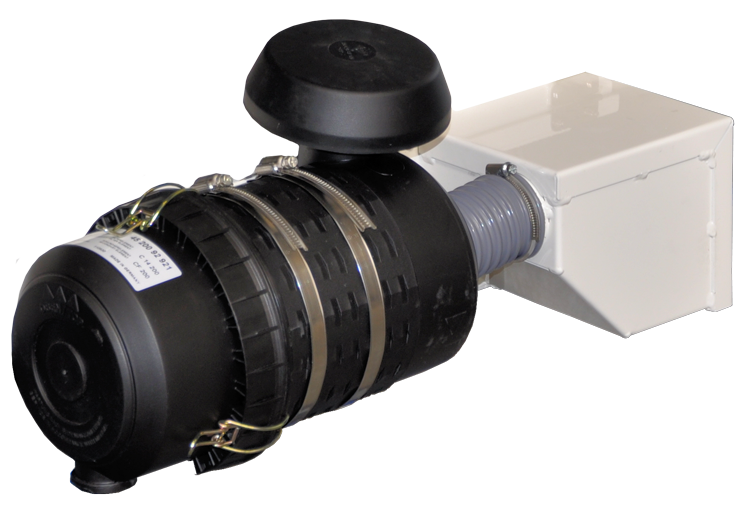

AUTAN HD with pressurisation and filtration option

INFORMATION

      Technical characteristics

      Voltage Voltage (accessories)Electrical powerElectrical power (accessories)Cooling capacityHeating capacityAir flowAir conditioning modelAir conditioning/heating model
      12 V12 V1240 W-6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.1080 m³/h320D14-
      24 V24 V1580 W-6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.820 m³/h320C85-
      48 V12 V1100 W480W (12 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.1080 m³/h320D15-
      48 V24 V1100 W480W (24 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.820 m³/h320D16-
      80 V12 V1100 W480W (12 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.1080 m³/h320D17-
      80 V24 V1100 W480W (24 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.820 m³/h320D18-
      96 V12 V1100 W480W (12 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.1080 m³/h320D19-
      96 V24 V1100 W480W (24 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.820 m³/h320D20-
      144 V12 V1100 W480W (12 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.1080 m³/h--
      144 V24 V1100 W480W (24 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.820 m³/h--
      312 V12 V1100 W480W (12 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.1080 m³/h--
      312 V24 V1100 W480W (24 V)6.3 kW, 43 °C, 50 % HUMID.9 kW, -15 °C, 40 % HUMID.820 m³/h--
