ALIZE 8 & 9

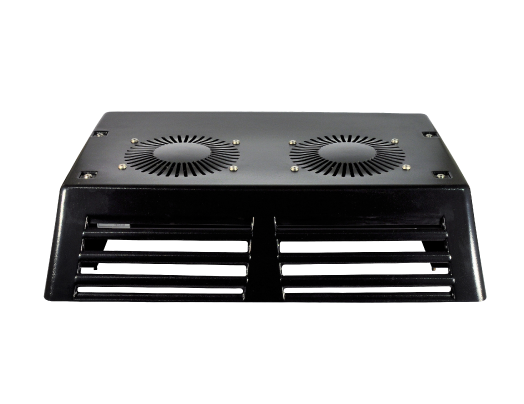

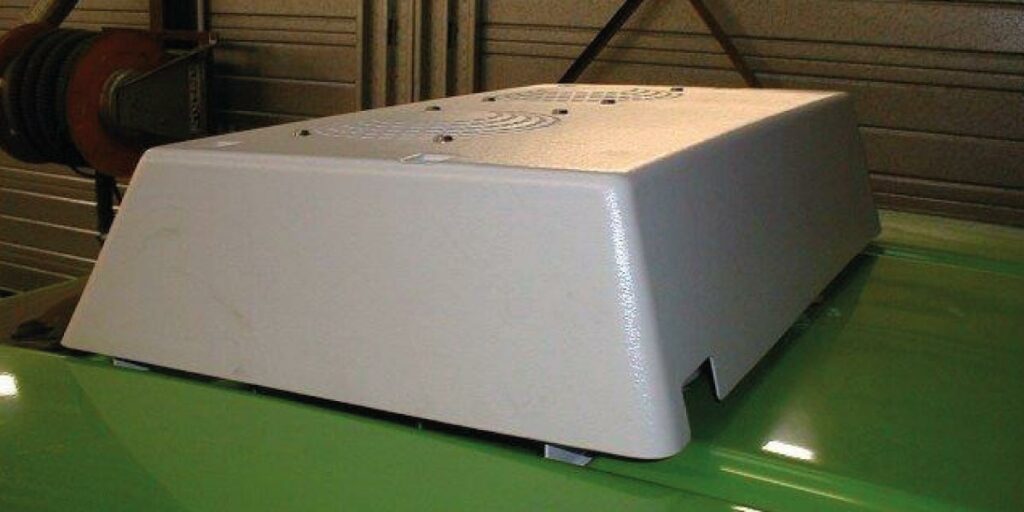

The ALIZE 8 and ALIZE 9 stand-alone condenser is installed horizontally in the ceiling of the vehicle.

Product details:

Integrated filter-dehydrator, two spiral fans and a HP thermal safety valve
Waterproof electrical connections for the cable harness (IP68)
Suitable for cabins up to 3 m³ in volume
Weight: 13 kg

INFORMATION

Technical characteristics


Voltage	Power Consumption	Cooling Capacity	Airflow	Model	Color	Reference
12 V	216 W	4 kW, 43 °C, 50 % HUMID.	1960 m³/h	ALIZE 8	White	340A02
24 V	240 W	4 kW, 43 °C, 50 % HUMID.	2060 m³/h	ALIZE 8	White	340A04
12 V	216 W	5 kW, 43 °C, 50 % HUMID.	1960 m³/h	ALIZE 9	White	340A19
12 V	216 W	5 kW, 43 °C, 50 % HUMID.	1960 m³/h	ALIZE 9	Black	340A33
24 V	240 W	5 kW, 43 °C, 50 % HUMID.	2060 m³/h	ALIZE 9	White	340A21
24 V	240 W	5 kW, 43 °C, 50 % HUMID.	2060 m³/h	ALIZE 9	Black	340A35
