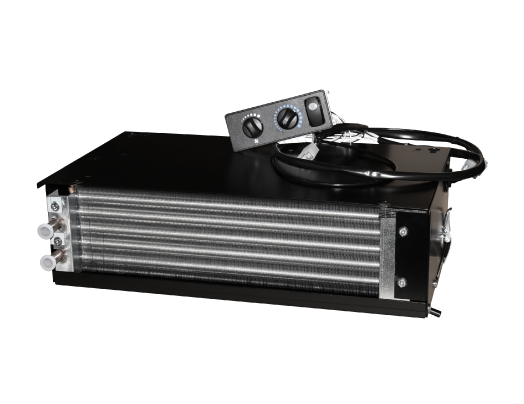

ARCTIC

ARCTIC evaporators and heaters are particularly suitable for Off-Road applications in the most extreme conditions:

Integrated with a double ceiling
Various air distribution configurations (direct or via conduit)
Includes 1 control panel and 4 diffusers
Suitable for cabins up to 4 m³ in volume
Weight: 12 kg

Air filter option (ref.: 530D35), containing :

EU5-F5 air filter
Filter support
Support bracket

INFORMATION

Technical characteristics


Voltage	Power Consumption	Cooling Capacity	Heating Capacity	Airflow	Ref. Air Con.	Ref. Air Con./Heating
12 V	410 W	6,5 kW, 43 °C, 50 % HUMID.	11,5 kW, -10 °C, 40 % HUMID.	830 m³/h	350B58	350A03
24 V	410 W	6,5 kW, 43 °C, 50 % HUMID.	11,5 kW, -10 °C, 40 % HUMID.	820 m³/h	350B66	350A04
