HVAC Products > Monoblock Air Conditioners > SKIMO MD

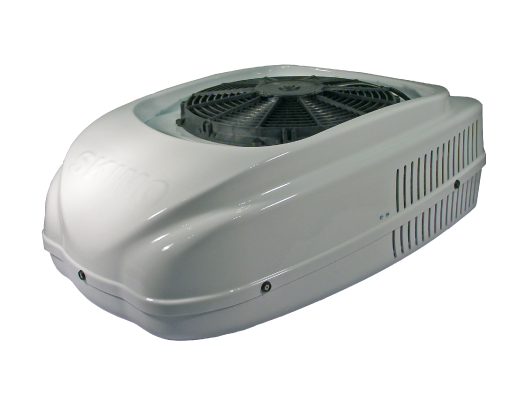

SKIMO MD

The SKIMO MD compact air conditioners can be easily installed in the roof of all types of cabins where there is not enough space for a more integrated solution.
The SKIMO MD brings together a condenser, evaporator, dehydrator, pressure safety switches and controls all in a single piece of equipment. This system is designed to be connected via rigid lines to an engine-driven compressor.

Details:

  • Suitable for cabins up to 3 m³ in volume
  • Requires cutting the roof
  • Weight: 20 kg
SKIMO MD

INFORMATION

      Technical characteristics

      VoltageRated CurrentCooling CapacityAir flowSupplementsRef. Air Con.
      12 V220 W4 kW, 43 °C, 50 % HUMID.510 m³/hRoof cut-out : Yes
      Weight : 20 kg      		320B15
      24 V220 W4 kW, 43 °C, 50 % HUMID.530 m³/h320B16
