HEATING VALVES

Cable-controlled Valves

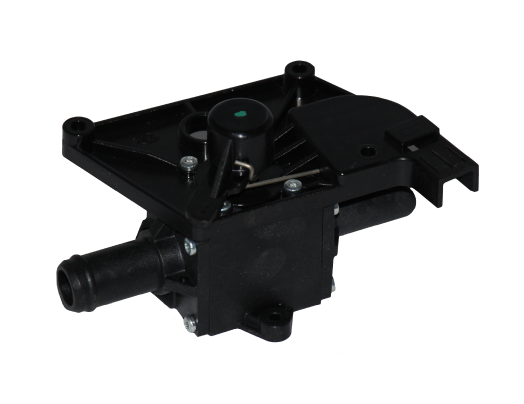

Additional information for reference numbers 370C26, 370C27, 370C28 and 370C29:

• Storage temperature: -40°C to +80°C
• Maximum cooling fluid temperature: +115 °C
• Maximum operating pressure: 2 bar
• For a flowrate of 15 l/min,
• Endurance test of 100,000 cycles (opening and closing) at 1 bar and +105 °C

Additional information for reference number 370A04:

• Storage temperature: -40°C to +80°C
• Maximum cooling fluid temperature: +130 °C at 3 bar
• Maximum operating pressure: 10 bar

Button-controlled Valves

Additional information for reference numbers 370C30, 370C31, 370C32 and 370C33:

• Storage temperature: -40 °C to +80 °C
• Maximum cooling fluid temperature : +115 °C
• Maximum operating pressure: 2 bar
• For a flowrate of 15 l/min
• Endurance test of 100,000 cycles (opening and closing) at 1 bar and +105 °C

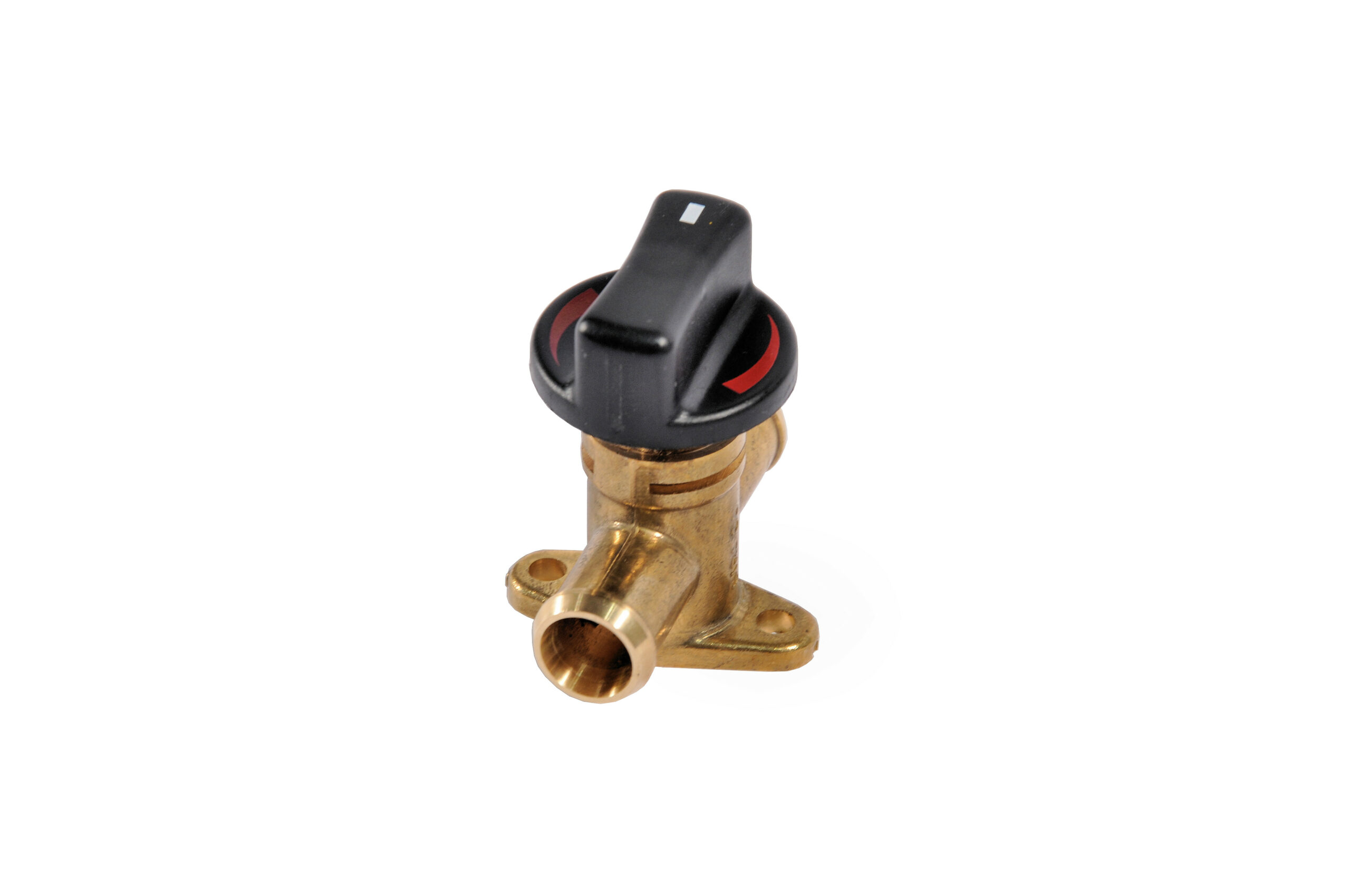

Additional information for reference number 370A64:

• Maximum cooling fluid temperature: +110 °C.

Motorised Valves

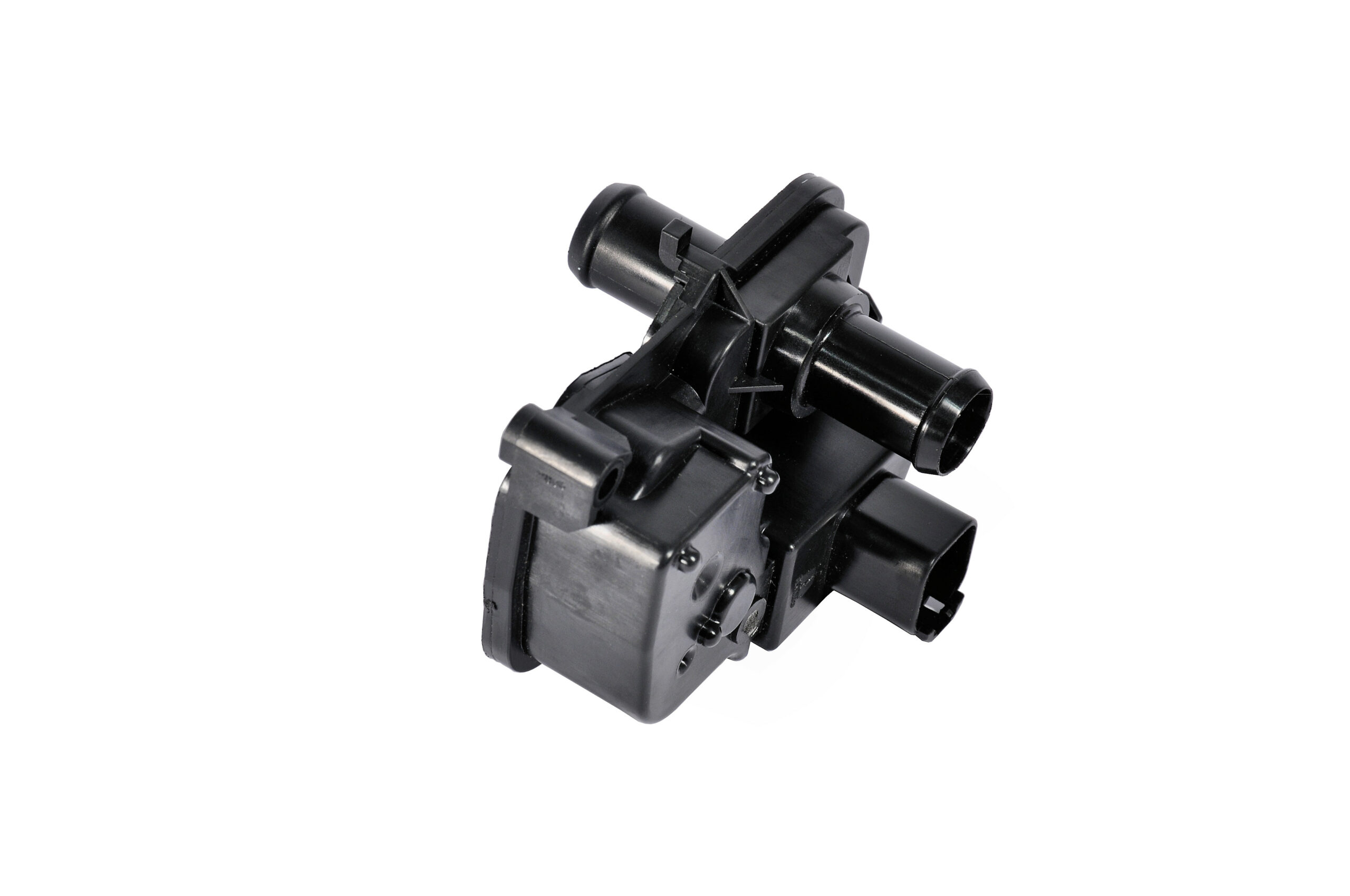

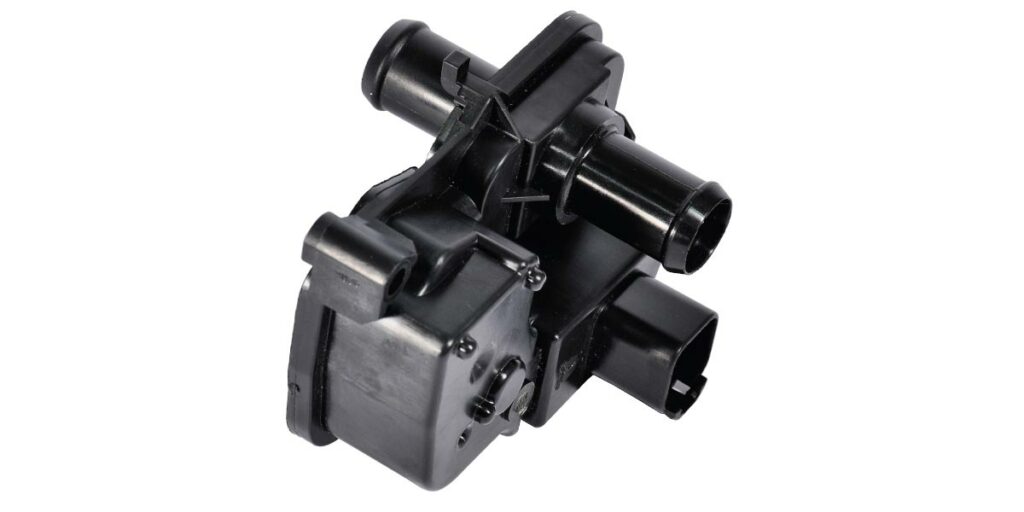

Additional information for reference numbers 370A65 and 370A68:

• Storage temperature: -40 °C to +80 °C
• Maximum cooling fluid temperature: +85 °C
• Maximum operating pressure: 2 bar
• 7-bar burst test for 1 minute without deterioration
• For a flowrate of 17l/min
• Endurance test of 360,000 cycles (opening and closing) at 1.4 bar and +80 °C
• IP rating: IP67 according to IEC60529
• Supply voltage: 12 V and 24 V
• Voltage range at 12 V from 9 to 16 V and at 24 V, from 22 V to 35 V

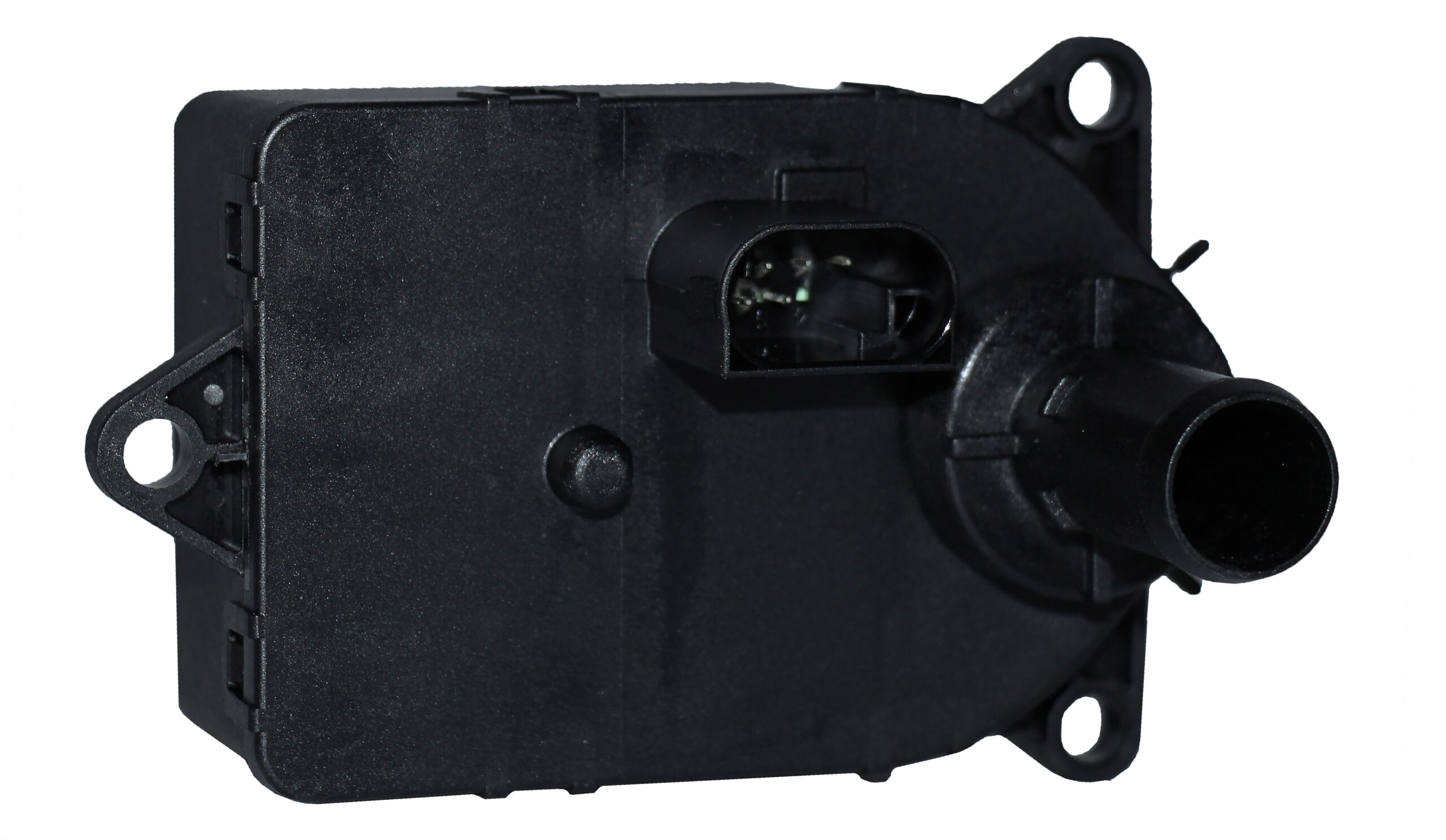

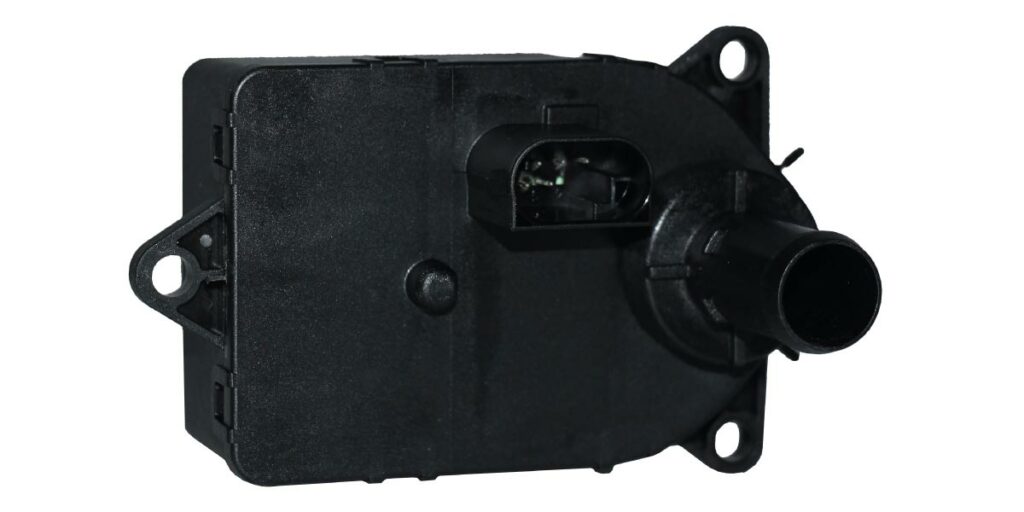

Additional information for reference number 370F41:

• Storage temperature: -35 °C to +80 °C
• Maximum cooling fluid temperature : +100 °C
• Maximum operating pressure: 3 bar
• For a flowrate of 15l/min
• Supply voltage: 24 V

Valves with right-angle connectors

Valves with right-angle connectors are delivered in a standard position by default.

On request, we can provide them in a position that suits your needs.
