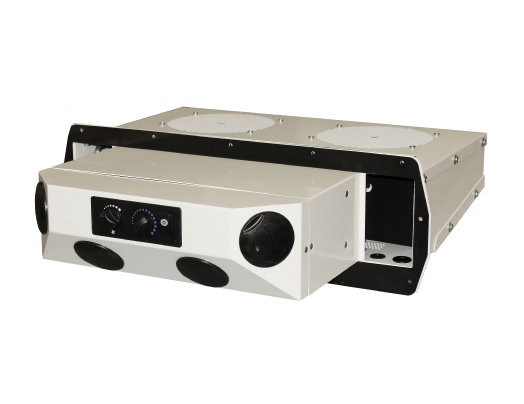

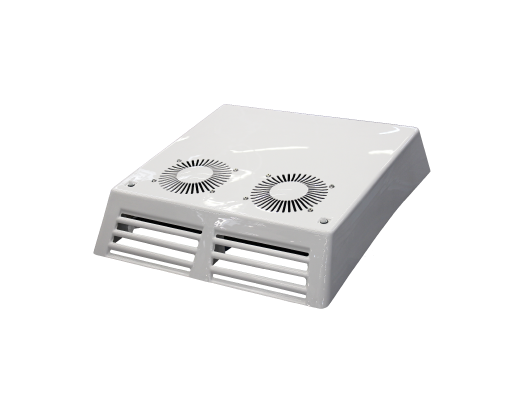

Standard solutions In12 and 24 volts Performant, compact, adaptable COMPACT SILENT 12 AND 24 VOLTS EASY TO INSTALL PERFORMANCE COMFORT Monoblock Air Conditioners SNDC’s AUTAN and AUSTRAL range of standard monoblock air conditioning systems are an excellent choice when it is not possible to integrate a complete system in the vehicle cabin. Designed for small and medium-sized runs of vehicle adaptations, these ranges help avoid the expense of custom solutions. The AUTAN and AUSTRAL ranges offer a variety of models for diverse applications, such as off-road machinery, agricultural vehicles, construction vehicles and mining machinery. Supply voltages of 12 and 24 volts. For either roof mounting (AUTAN) or cabin shelf mounting (AUSTRAL). Cooling capacity from 4 to 6.3 kW (outdoor operating temperature of 43 °C) and heating, pressurisation and air filtration functions. The hydraulic version, HYDRAUTAN, is particularly designed for vehicles in which it is not possible to connect a compressor. The AUTAN and AUSTRAL ranges are compatible with R134a and R1234yf refrigerants. AUSTRAL Voltage: 12 and 24 V Max. cooling capacity: 4.8 kW Environment: Extreme Position: Roof-mounted Version: Air conditioning and/or heating Compressor: Motor drive AUTAN 5 Voltage: 12 et 24 V Max. cooling capacity: 6.3 kW Environment: Non-extreme Position : roof Version : Air conditioning and/or heating Compressor: Motor drive AUTAN HD Voltage: 12 et 24 V Max. cooling capacity: 6.3 kW Environment: Extreme Position : roof Version : Air conditioning and/or heating Compressor: Motor drive HYDRAUTAN Voltage: 12 et 24 V Max. cooling capacity: 6.3 kW Environment : Extreme Position : roof Version : Air conditioning and/or heating Compressor: Interne par hydraulique SKIMO MD Voltage: 12 et 24 V Max. cooling capacity: 4 kW Environment: Extreme Position : roof Version : Air conditioning Compressor: Motor drive Ask for personal assistance, and you’ll be contacted by one of our vehicle air conditioning specialists. Sectors AUSTRAL, AUTAN 5, AUTAN HD, HYDRAUTAN and SKIMO MD packaged air conditioners are particularly well suited to the cabs of : Agricultural machinery, Public works machinery, Commercial and industrial vehicles, Material handling equipment Mining machinery, Forestry machinery, Railway equipment. Installation Easy mounting and assembly External electrical and refrigerant connections Compatible with R134a refrigerant and R1234yf on request HYDRAUTAN monobloc air conditioners require hydraulic connection to the machine circuit. Technical qualifications AUSTRAL, AUTAN 5, AUTAN HD, HYDRAUTAN and SKIMO MD monoblock air conditioners have been extensively tested under the most severe operating conditions. Every AUSTRAL, AUTAN 5, AUTAN HD, HYDRAUTAN and SKIMO MD monoblock air conditioner has been subjected to an inspection to guarantee its performance over time.
